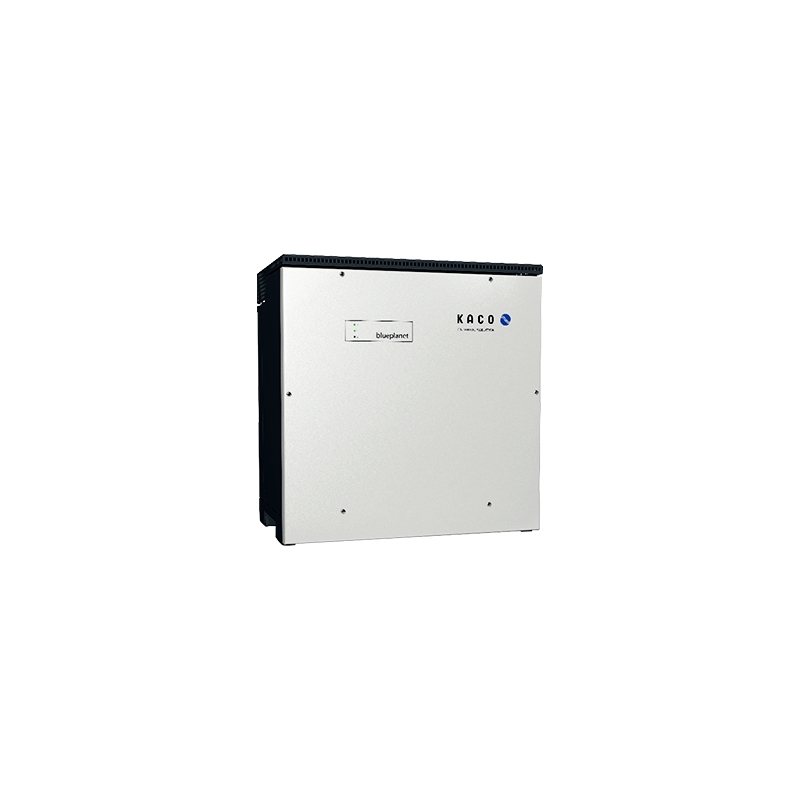

blueplanet 125.0 TL3
- Provides optimized system voltage for solar power plants by 1500V modular type
- IP66 outdoor wall mounting type. Lightweight design as 80kg total and operation in ambient temperature between -25˚C ~ 60˚C
- World first inverter using Silicon carbide semiconductors and increased durability
- Test run and maintenance are allowed by remote service
DC input data
| Max. recommended PV generator | 185.5kW |
|---|---|
| MPP Voltage Range | 875 ~ 1300V |
| Operating range | 875 ~ 1450V |
| Rated DC voltage / start voltage | 900 V / 1000 V |
| Max. no-load voltage | 1500 V |
| Max. input current | 160A |
| Max. short circuit currentlsc max | 300A |
| Number of MPP tracker | 1 |
| Connection per tracker | 2 |
AC output data
| Rated Output | 125000VA |
|---|---|
| Max. power | 137500VA |
| Line voltage | 600V (3P+PE) |
| Voltage range (Ph-Ph) | 480 - 760 V |
| Rated frequency (range) | 50Hz / 60Hz (45 - 65Hz) |
| Rated current | 3 x 120.3A |
| Max. current | 3 x 132.3A |
| Reactive power/cos phi | 0 - 100% Snom / 0.30 ind. - 0.30 cap. |
| Max. total harmonic distortion (THD) | ≤ 3% |
| Number of grid phases | 3 |
Mechanical data
| Display | LEDs |
|---|---|
| Control units | webserver, mobile app |
| Interfaces | Ethernet, USB, RS485, optional: 4-DI, WIFI |
| Fault signalling relay | potential-free NOC max. 30V / 1A |
| DC connection | cable lug, max. 240㎟ (0.372 in2) Cu or Al |
| AC connection | cable lug, max. 240㎟ (0.372 in2) Cu or Al |
| Ambient temperature | -25℃ - +60℃ |
| Humidity | 0 - 100% |
| Max. installation elevation (above MSL) | 3000m |
| Min. distance from coast | 2000 m / 500 m (OD+ version) |
| Cooling | temperature controlled fan |
| Protection class | IP66 / NEMA 4X |
| Noise emission | < 96 db (A) |
| H x W x D | 719 x 699 x 450 mm |
| Weight | < 80 kg |
General Data
| Max. Efficiency | >99.0% |
|---|---|
| Europ. Efficiency | >98.5% |
| CEC. Efficiency | > 98.5% |
| Standby consumption | < 10W |
| Circuitry topology | Transformerless |
