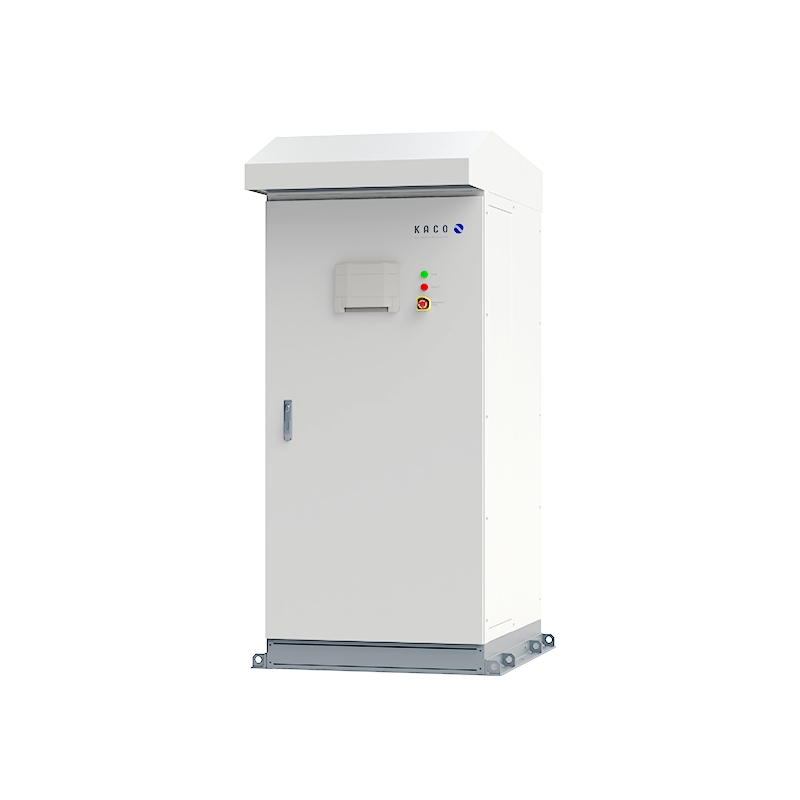

OP500-TL-OD
- Possible to low voltage connection with grid and more than half size reduction
- High efficiency inverter of max. 98.9%, Euro 98.5%
- Applied 3 level topology, reactive power adjustment function, PV ground monitoring device and string monitoring device to quick maintenance of PV side (option)
DC Input
| Max. PV voltage | 515 kW |
|---|---|
| MPP range | 560 ~ 830 V |
| DC operating range | 504 ~ 1000 V |
| Max. input voltage | 1100 Vdc |
| Start up voltage | 670 V |
| Max. input current | 1022 A |
| Input fuse (pair) | 250A 6 pairs |
| Number of DC inputs (pair) | 6 pairs |
AC Output
| Rated power | 500 kW |
|---|---|
| Supply voltage | 380 V (12% ~+10%) |
| Rated frequency | 60 Hz |
| Rated current | 760 A |
| Total harmonic distortion(THD) | <3% at rated output |
| Power Factor | 1 |
| Power factor adjustment(reactive power adjustment) | 0~1 (Adjustable Leading or Lagging) |
| Circuit Configuration | 3 phase 3 wire |
Mechanical data
| Protection class | IP65 |
|---|---|
| Operating temperature range | -20 ~ +60 ℃℃(>50 derating) |
| Storage temperature range | -20 ~ +70 |
| Relative humidity | 0 ~ 95 %(Non condensing) |
| Maximum operational altitude | 2000 m |
| Cooling | Forced Fan |
| Noise emission | < 60 dB |
| W x H x D | 2120 x 900 x 1150 mm |
| Weight | 980 kg |
| Certification and test report | KR(KTL) |
General data
| Max. efficiency | 98.83% |
|---|---|
| European efficiency | 98.54 % |
| Consumption | <1 % in regular |
| Night consumption | < 220 W |
| External auxiliary power voltage | 10%) |
